Product Details
expand_less
| Cup Radius (Inch) |
0.1300 |
| Part Description |

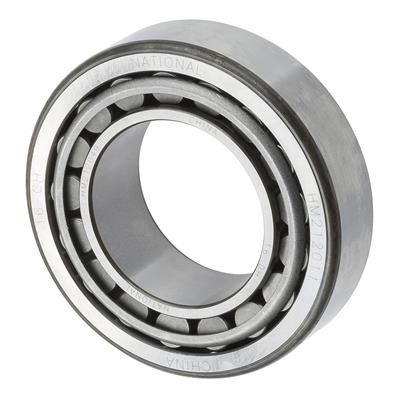

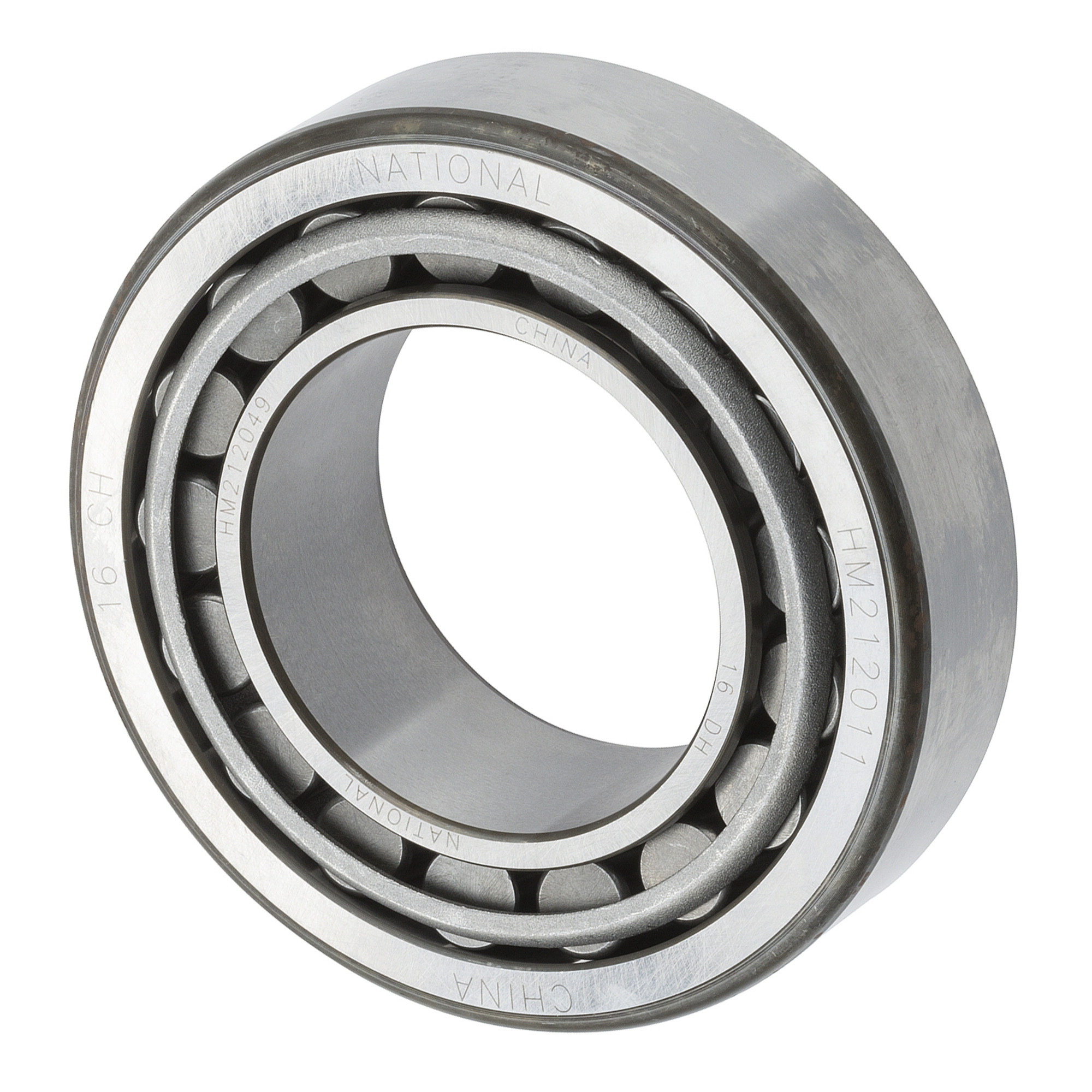

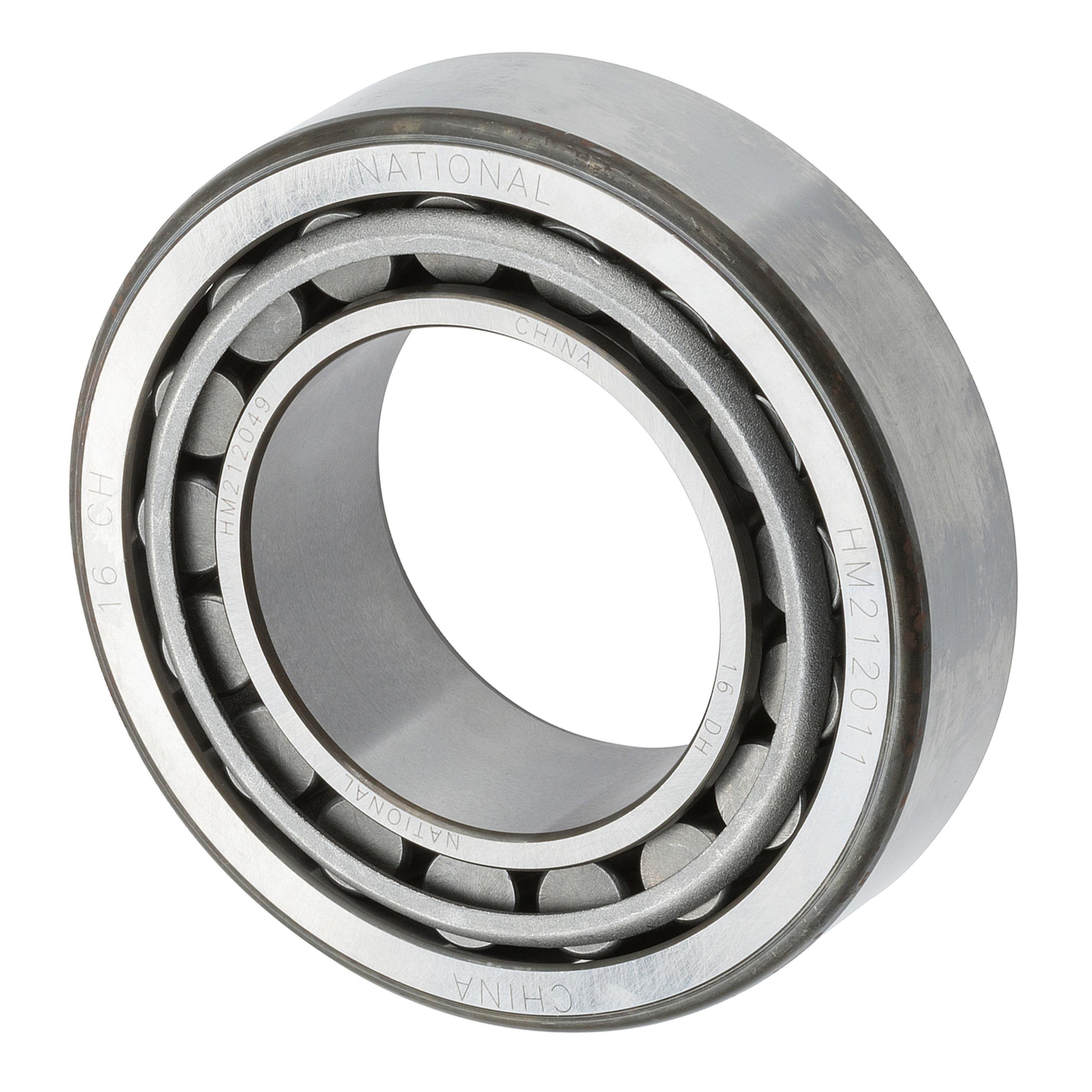

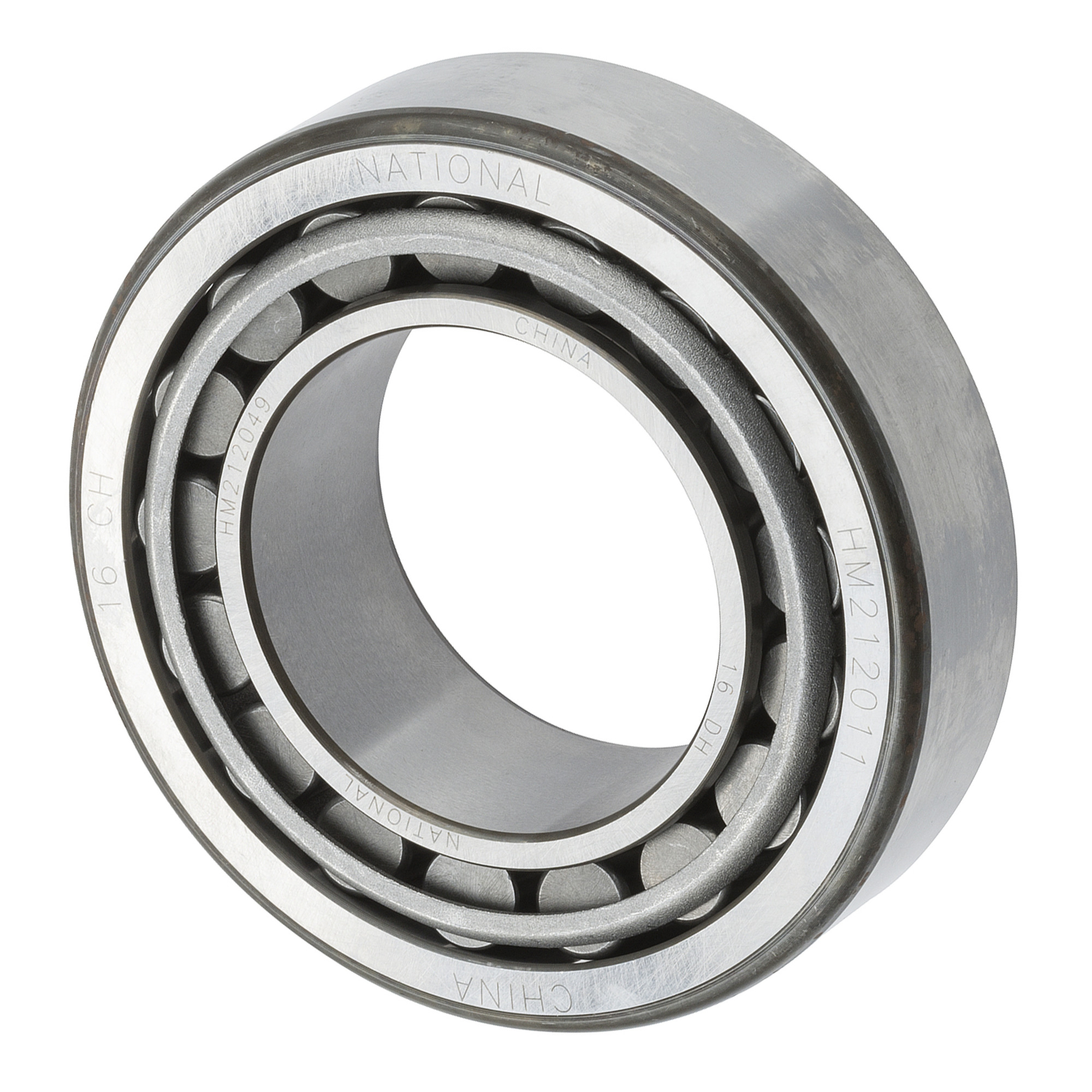

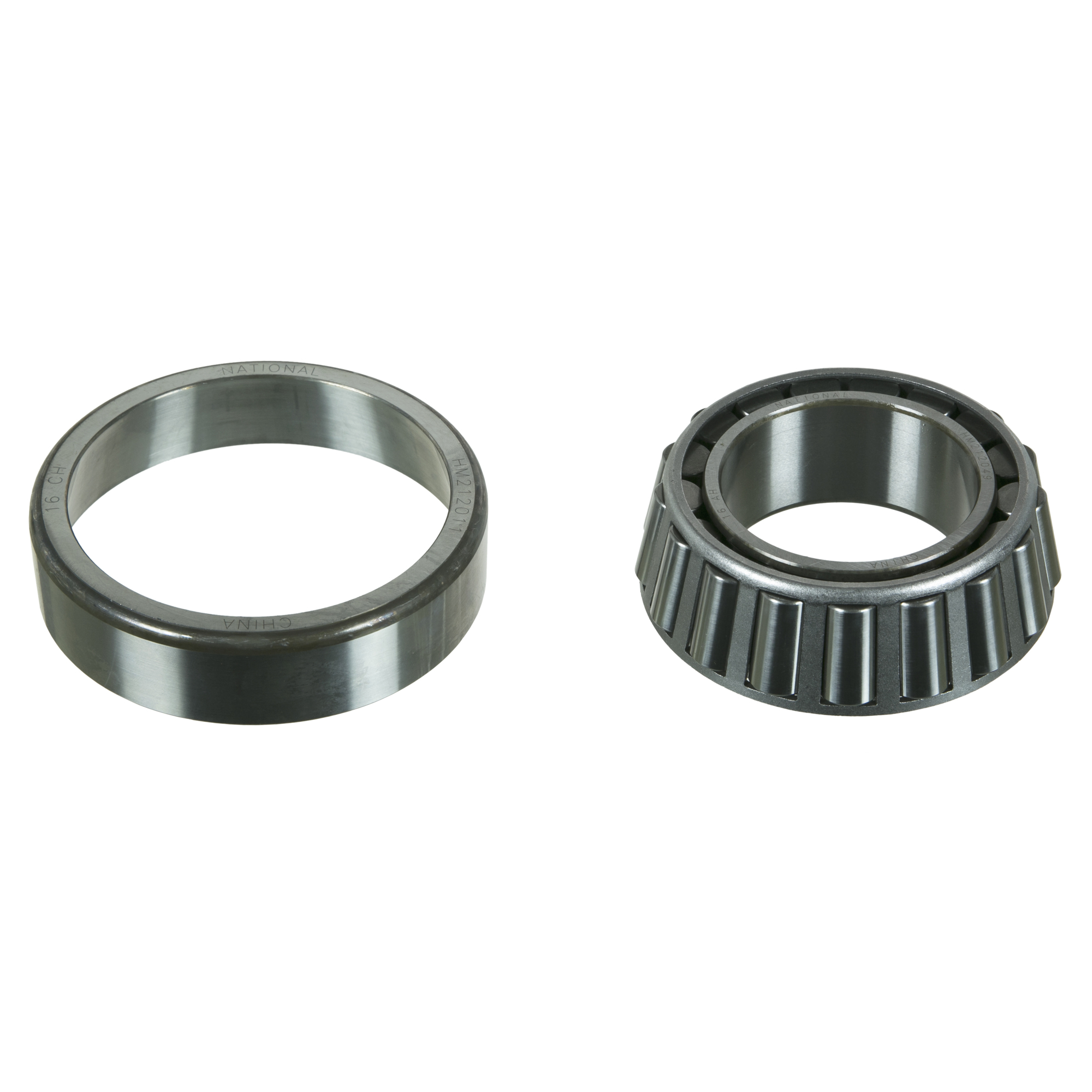

Taper Bearing Set |
| Taper Bearing Cone |
HM212049 |
| Cup Bore (Inch) |
4.8130 |
| Heavy Duty Supplier |
Yes |
| Cup Radius (MM) |
3.3020 |
| Cone Radius (MM) |
3.5560 |
| Cup Length (MM) |
29.7180 |
| Cup Bore (MM) |
122.2500 |
| Duty Type |
Heavy Duty |
| Width (inch) |
1.5000 |
| Taper Bearing Cup |
HM212011 |
| Cone Length (Inch) |
1.5100 |
| Cup Length (Inch) |
1.1700 |
| Cone Radius (Inch) |
0.1400 |
| Cone Bore (MM) |
66.6750 |
| Prop 65 Label (Yes/No) |
No |
| Cone Bore (Inch) |
2.6250 |
| WIDTH (MM) |
38.1000 |
| Alliance Keywords |
multi purpose bearing, roulement polyvalent |
| Width |
38.1000 |
| Cone Length (MM) |
38.3540 |
| Grade Type |
Premium |
| Part Terminology |
Multi-Purpose Bearing |
Features & Benefits
expand_more
Manufactured with premium-grade steel, National(R) taper bearing sets feature crowned raceways and rollers to ensure even load distribution.
Application Summary
expand_more
1997-2011 Isuzu FTR (Front Inner) (Qualifier: with 10,000 (lb) Front Axle, with 12,000 (lb) Front Axle); 1997-2011 Isuzu FVR (Front Inner) (Qualifier: with 12,000 (lb) Front Axle, with 10,000 (lb) Front Axle); 2004-2011 Isuzu FXR (Front Inner) (Qualifier: with 12,000 (lb) Front Axle); 2005-2007 Isuzu HTR (Front Inner) (Qualifier: with 12,000 (lb) Front Axle, with 10,000 (lb) Front Axle); 2005-2008 Isuzu HVR (Front Inner) (Qualifier: with 12,000 (lb) Front Axle); 1997-2009 Chevrolet C6500 Kodiak (Front Inner) (Qualifier: with 14,600 (lb) Front Axle, with 12,000 (lb) Front Axle, with 10,000 (lb) Front Axle); 1997-2009 Chevrolet C7500 Kodiak (Front Inner) (Qualifier: with 10,000 (lb) Front Axle, with 14,600 (lb) Front Axle, with 12,000 (lb) Front Axle); 1997-2009 GMC C6500 Topkick (Front Inner) (Qualifier: with 12,000 (lb) Front Axle, with 14,600 (lb) Front Axle, with 10,000 (lb) Front Axle); 1997-2009 GMC C7500 Topkick (Front Inner) (Qualifier: with 10,000 (lb) Front Axle, with 14,600 (lb) Front Axle, with 12,000 (lb) Front Axle); 2005-2017 Hino 268 (Front Inner); 2009-2018 Hino 338 (Front Inner); 2009-2014 Hino 338CT (Front Inner); 2016-2019 Ford F-650 (Front Inner) (Qualifier: with 12,000 (lb) Front Axle, with 14,000 (lb) Front Axle, with 10,000 (lb) Front Axle); 2016-2019 Ford F-750 (Front Inner) (Qualifier: with 12,000 (lb) Front Axle, with 14,000 (lb) Front Axle, with 10,000 (lb) Front Axle)
