| Installation Height - Inches | 10.00 |
| Heavy Duty Supplier | Yes |
| Bar Diameter - MM | 16.70 |
| ID - MM | 94.60 |
| Load - lbs | 1618.00 |
| Front Spring Relaxed Length | 354.00 |
| End Type 1 | Pigtail |
| Free Height - Inches | 13.93 |
| End Type 2 | Tangential |
| Rear Spring Outside Diameter | 5.050 |
| End 1 Type | Pigtail |
| Spring Rate - lbs per inch | 488.00 |
| Rear Spring Relaxed Length | 13.93 |
| Spring Type | Variable Rate |
| Spring Color | Black |
| Free Height - MM | 354.00 |
| End 2 Type | Tangential |

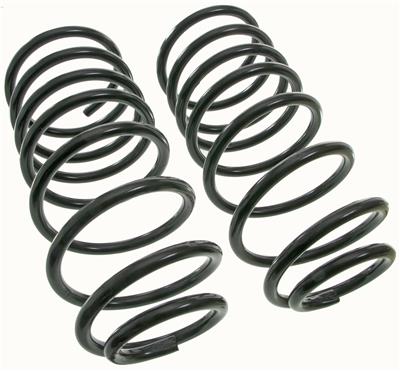

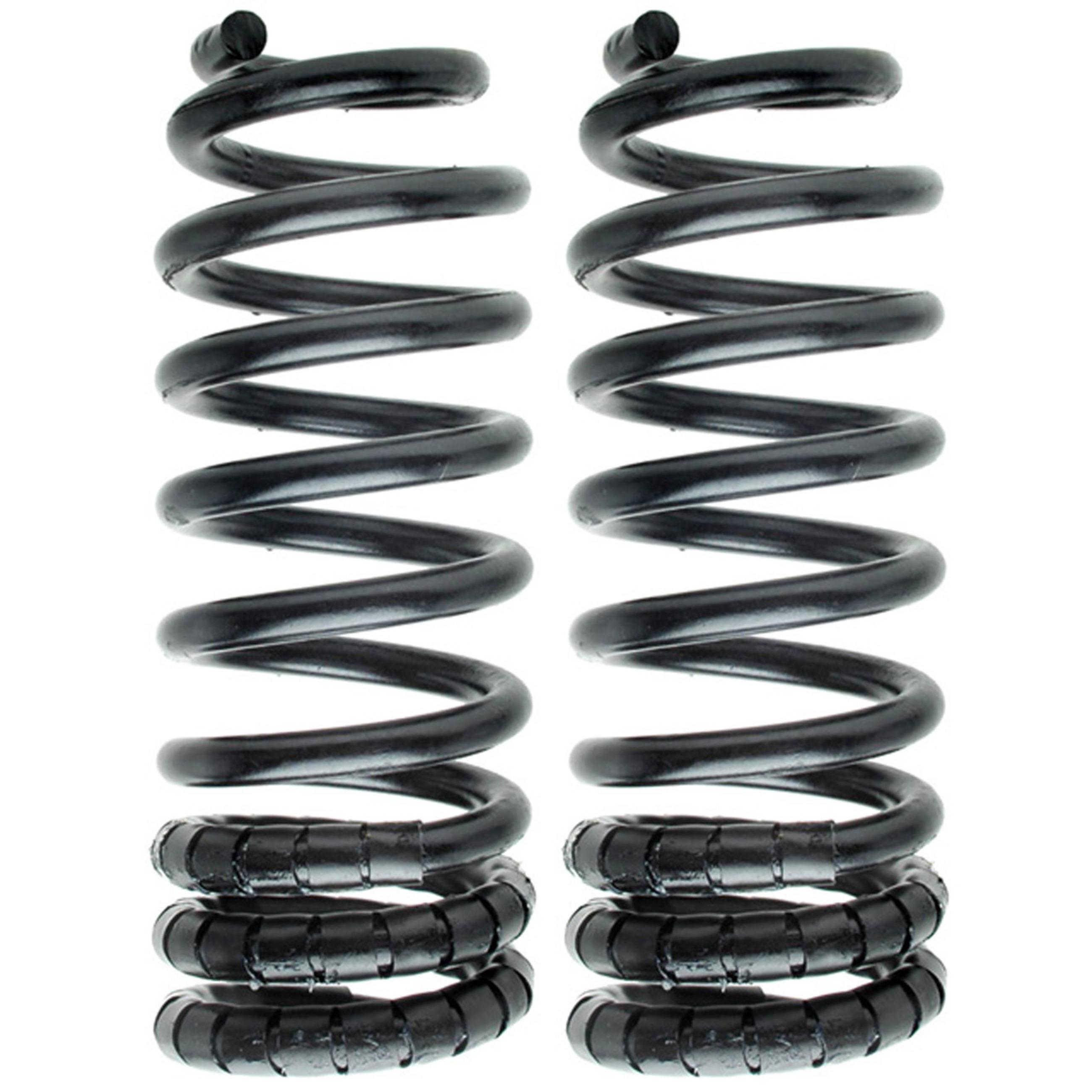

| Part Description | Coil Spring Set |
| ID - Inches | 3.72 |
| Rear Spring Compressed Length | 10.00 |
| Bar Diameter - Inches | 0.65 |
| Installation Height - MM | 254.00 |
| Front Spring Compressed Length | 10.00 |
| Front Spring Outside Diameter | 5.050 |
| Prop 65 Label (Yes/No) | No |
| Grade Type | Premium |
| Wire Diameter | 0.65 |
| Part Terminology | Coil Spring Set |
