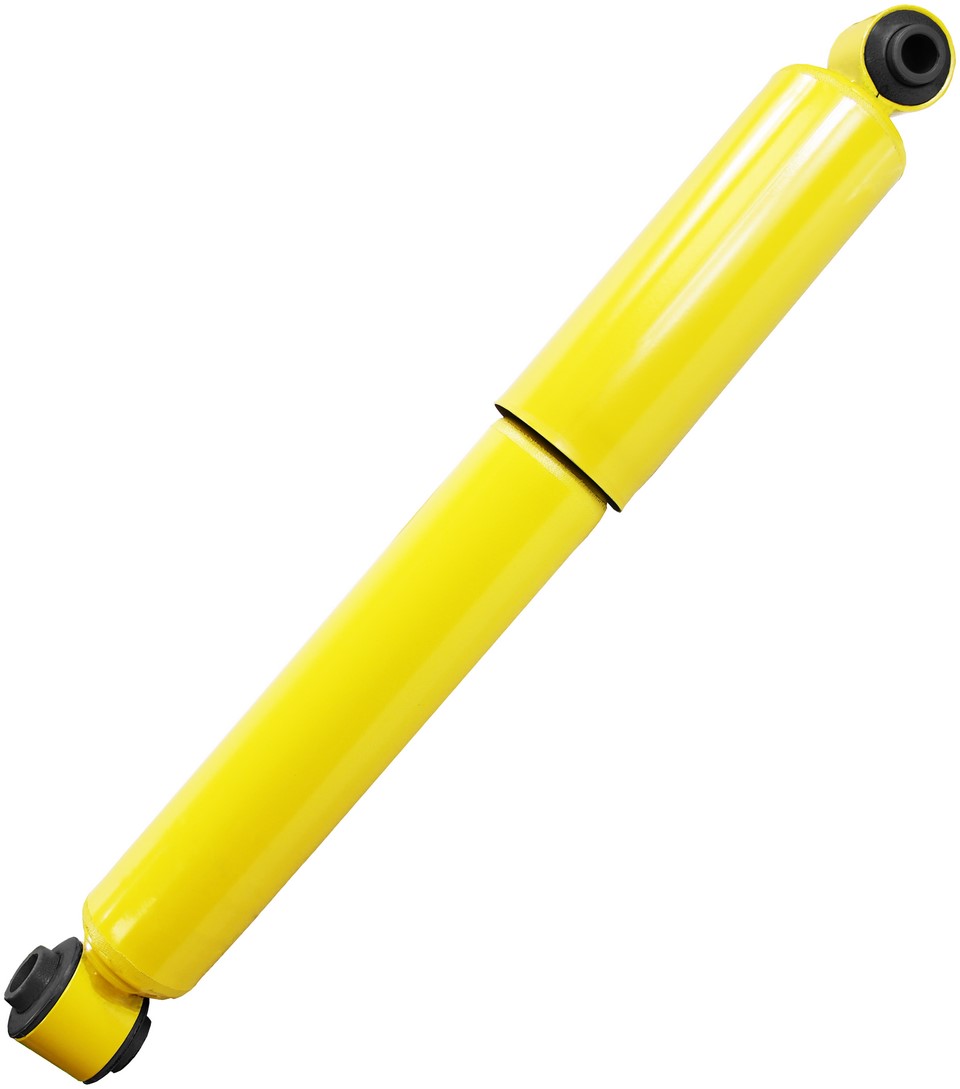

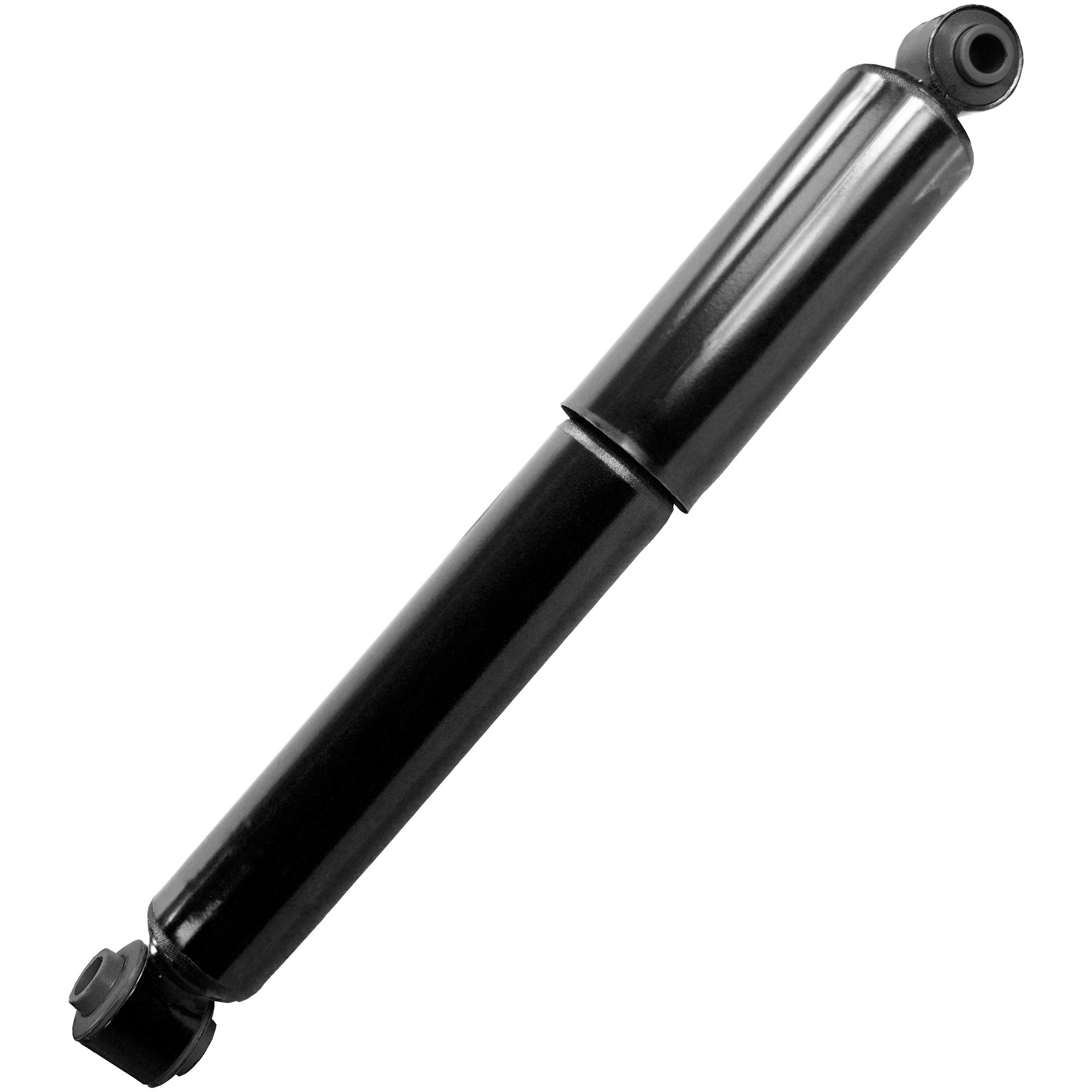

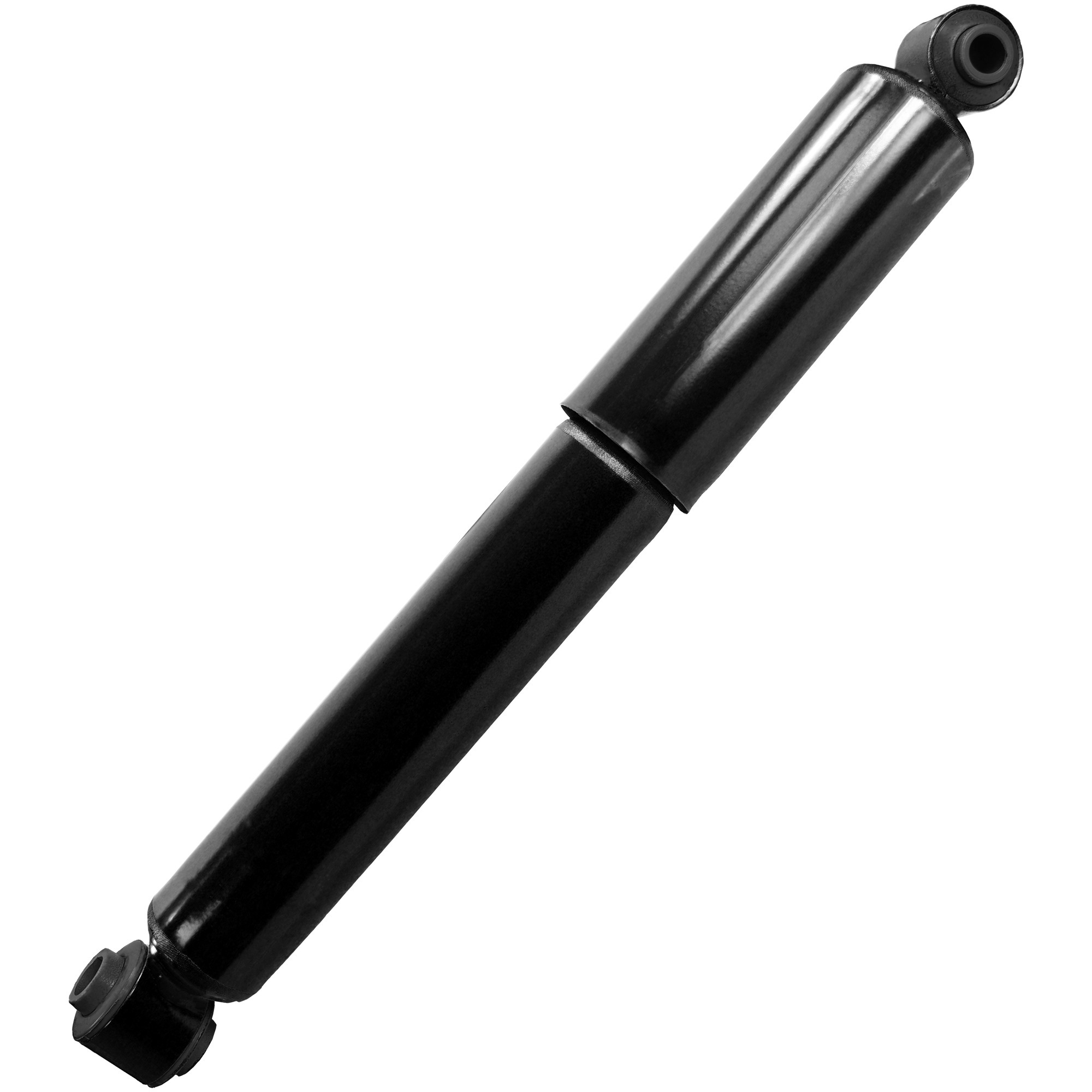

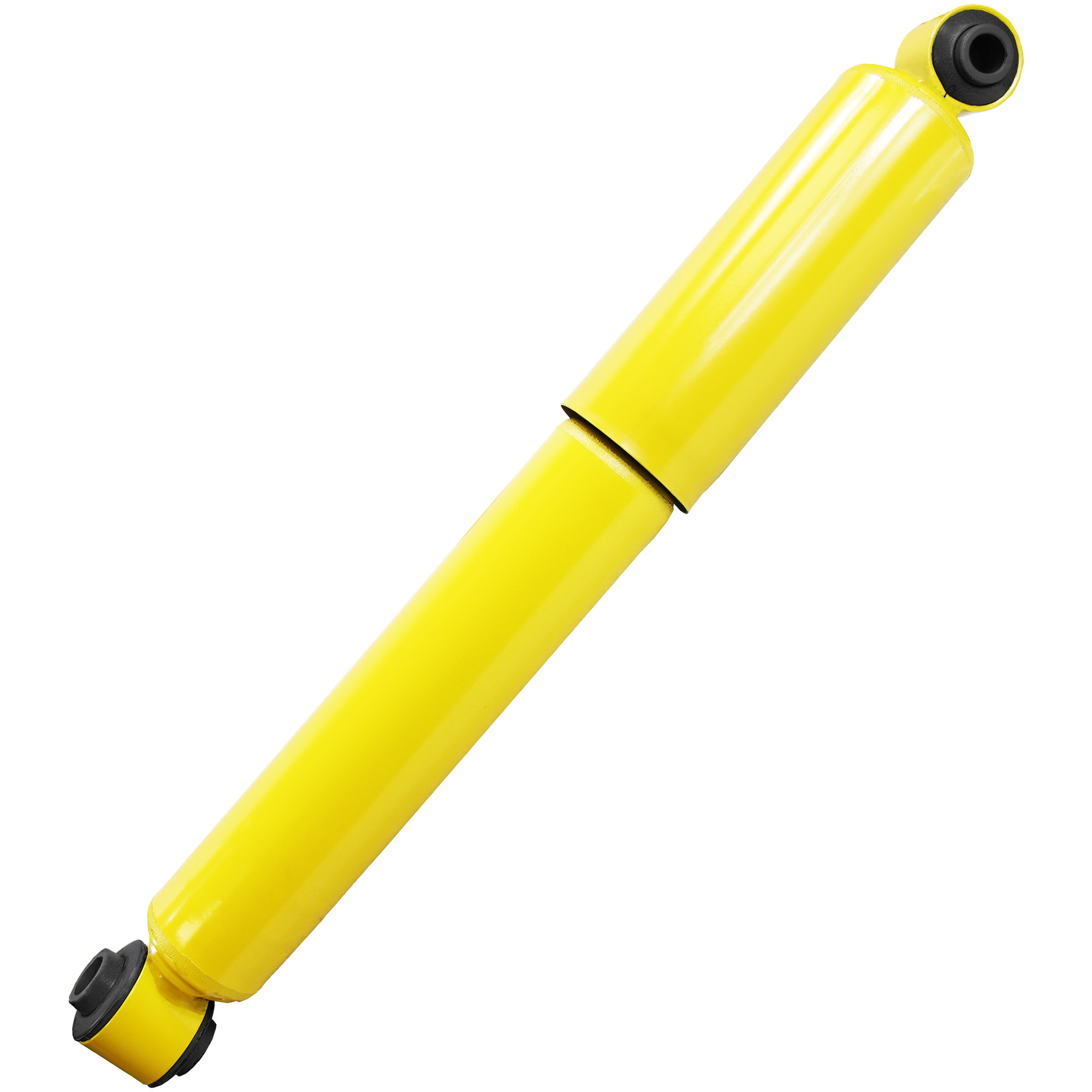

Magnum Front Suspension Shock Absorber
Part # 66637 | Line Code: MON
brandNameImage
brandNameImage

$63.99
$63.99
error
Not Fitted

Product Details
expand_less
Extended Bumper Stop No
Bloqueo hidráulico extendido No
Gas Charged Yes
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Cylinder Color Black
Heavy Duty Supplier Yes
Most Popular Make / Model Chevrolet C70
Body Color Black
Most Popular Year 1979
Shock Absorber Rod End Measuring Point Center of Loop
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Accesorio(s) P00019
Tope de rebote extendido No
Lower Mounting Type Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Extended Length 23
Dust Shield Included Yes
Cubre polvo Yes
Upper Mounting Type L1/CP5
Internal Rebound Bumper No
Part Description Shock Absorber
Shock Absorber Body End Measuring Point Center of Loop
Compressed Length 358.8
Lower Mount Type Loop Bushing and Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Parts Pack(s) P00019
Color Black
Product Grade Premium
Mounting Hardware Included Yes
Max Year Covered 1989
Lower Mount Code LS54
Upper Mount Type Loop Bushing and Cantilever Pin Mount - 5/8" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame)
Tipo de Montura Superior L1/CP5
Tope de rebote comprimido No
Total Part VIO 36527
Min Year Covered 1976
Adjustable Rebound No
Lower Mounting Description Loop Bushing & Sleeve Mount - 3/4" Sleeve ID X 1.3/4" Sleeve OAL
Travel Length 8.875
Parts Pack P00019
Upper Mount Code L1/CP5
Dust Shield Yes
Grade Type Premium
Upper Mounting Description L1/CP5
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
The Monroe(R) Magnum(R) shock absorber for class 3-6 vehicles is gas-charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum(R) shocks to help reduce excessive vibration.

Application Summary
expand_more

1976-1989 Chevrolet C50 (Front) (Qualifier: Replaces OE Part Number(s) 22002294, 22007752, with Conventional Cab, 97 (in) BBC Conventional Tractor, Shocks are 1.38 (in) Bore); 1980-1989 Chevrolet C60 (Front) (Qualifier: Replaces OE Part Number(s) 22002294, 22007752, with Conventional Cab, 97 (in) BBC Conventional Tractor, Shocks are 1.38 (in) Bore); 1979-1989 Chevrolet C70 (Front) (Qualifier: Replaces OE Part Number(s) 22002294, 22007752, with Conventional Cab, 97 (in) BBC Conventional Tractor, Shocks are 1.38 (in) Bore)
