| Ring Gear Thickness | 12 |
| Heavy Duty Supplier | Yes |
| Tooth Quantity | 146 |
| Flywheel Cup Depth/Step Height | 0 |
| Number of teeth, starter ring gear | 146 |
| Dowel hole diameter | 6.35 |
| Flywheel friction surface outer diameter | 284 |
| Crank Hole Dia. | 10.85 |
| Centering diameter / dowel hole | 295 |
| Ring Gear Major Dia. | 12.3524 |
| Dowel Hole Pattern | 5 |
| Overall Casting O.D. | 12.4016 |
| Flywheel matches Clutch | Flywheel matches Clutch |
| Flywheel Friction Surface Inner diameter | 166 |
| Bolt hole PCD crankshaft | 72.8 |
| Flywheel Inner Diameter | 6.535 |
| Flywheel Thickness [mm] | 49 |
| Ring Gear Chamfer Side | Not available |
| Flange Thickness | 11.7 |
| Crank To Friction Surface | 45.45 |
| I.D. for Pilot | 25.3 |
| Number of Teeth | 146 |
| Ring Gear Chamfer matches OE | Ring Gear Chamfer matches OE |
| Bolt Hole Pattern | 2 |
| Flywheel Diameter | 11.181 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Not available |
| Ring Gear Mounting O.D. | 276.5 |
| Outside Diameter | 313.75 |
| Has Dowel Pins | with Dowel Pins |
| Bolt hole PCD clutch pres.plte | 11.6142 |

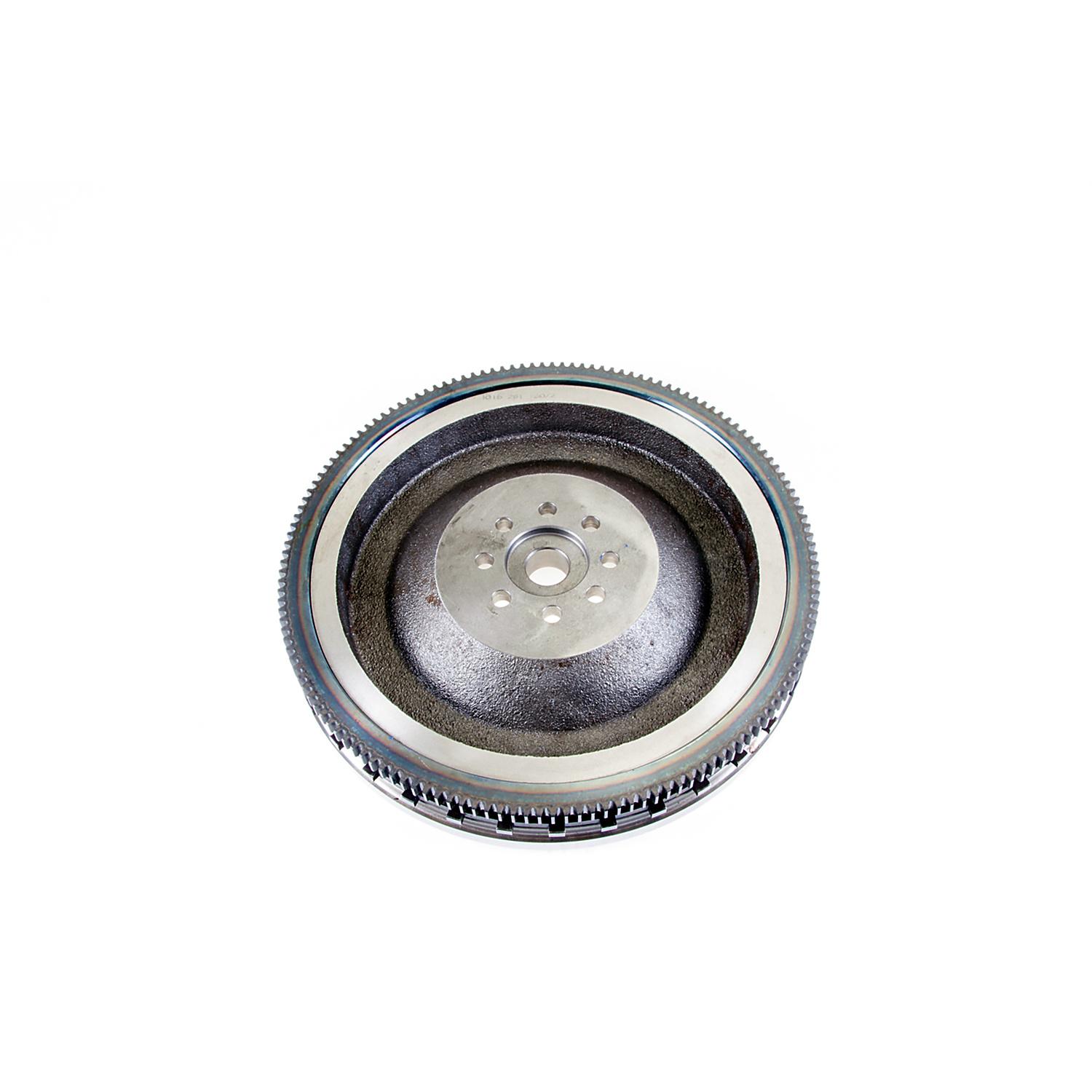

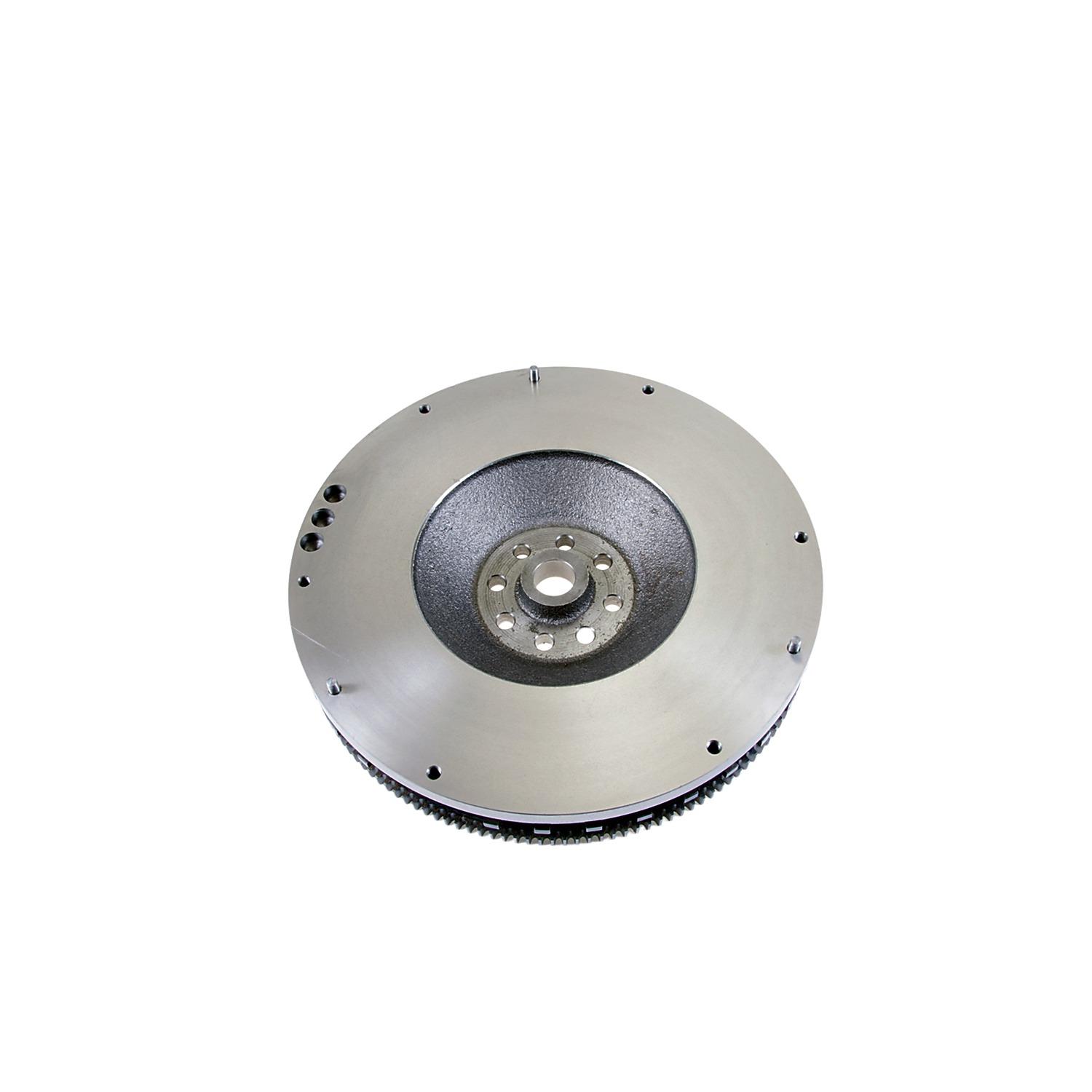

| Part Terminology | Clutch Flywheel |
