U & CV Joints & Drive Shaft

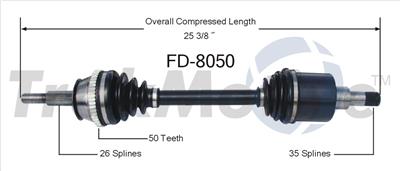

Cv axle shaft
Part # FD-8050 | Line Code: SRK
brandNameImage
brandNameImage

$96.99
error
Not Fitted

Product Details
expand_less
Outboard Joint Type Conventional
Inboard Joint Type Male
ABS Tone Ring Included Yes
Axle Nut Height (mm) 20
Axle Nut Length (mm) 34
Overall Compressed Length (mm) 644
Overall Compressed Length (in) 25.35
ABS Ring Type Toothed
Number of Outboard Splines 26
Number Of Inboard Splines 35
Number Of Outboard Joint Bolt Holes N/A
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
Axle Nut Thread Size M20*1.5
Axle Bolt Hex Size (mm) N/A
Number Of Inboard Joint Bolt Holes N/A
ABS Ring Tooth Count 50
Axle Nut Hex Size (mm) 29.4
Axle Nut Height (in) 4/5
Axle Nut Locking Type Self-Lock
New Or Remanufactured New
Boot Material Neoprene
Inboard Bolt Head Size (in) N/A
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Number of Bolt Holes N/A
Number Of Inboard Shaft Bolts N/A
Number Of Outboard Shaft Bolts N/A
Outboard Joint Bolt Thread Size N/A
Inboard Bolt Length (in) N/A
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Inboard Bolt Head Type N/A
Inboard Bolt Thread Size N/A
Inboard Bolt Head Size (mm) N/A
Inboard Shaft Connection Style Male
Inboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Conventional
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Axle Nut Length (in) 1 1/3
Axle Nut Hex Size (in) 1 1/6
Axle Nut Included Yes
Part Terminology CV Axle Shaft

Features & Benefits
expand_more
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Application Summary
expand_more

Ford;Mercury
