Body Switches & Relays

Barometric Pressure Sensor Connector
Part # S1837 | Line Code: STA

Not Fitted / Universal

Product Details
Terminal Type Blade
Wire Quantity 6
Terminal Quantity 3
Terminal Gender Female
Gender Male
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Dust Shield Included No
Weatherproof Sealed Yes
Material Plastic
Connector Shape Rectangle
Number of Wires 6
Attachment Method Push On
Bend Angle (Deg.) 0
Connector Quantity 1
Wiring Harness Included Yes
Water Resistant Yes
Splice Connectors Included No
Contact Terminal Material Metal
Number Of Splice Connectors Includ 0
Wire Gauge (ga) 14, 18
Length - Inches 1.125
Wiring Harness Length (in) 20.5
Wiring Harness Length (mm) 520.7

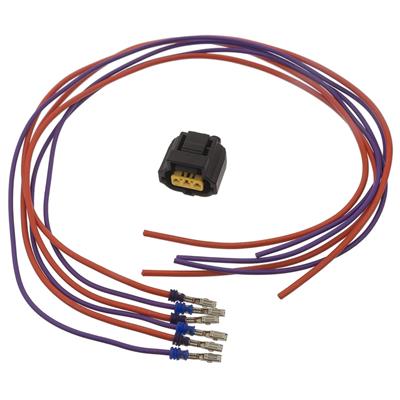

Part Terminology Barometric Pressure Sensor Connector

Features & Benefits
High-quality direct replacement electrical connector allows you to replace only the damaged connector instead of the entire harness for a cost-effective repair. The terminal is manufactured with high grade materials such as copper alloy, brass, and phosphor bronze. The housing is fabricated using polyamide resins. All of the materials together provide the connectors with prolonged life and superior performance . All electrical connectors are 100% tested for proper mechanical and electrical fit, form and function. Offering thousands of high-quality pigtails and sockets for nearly every electrical job.
