Shocks & Struts

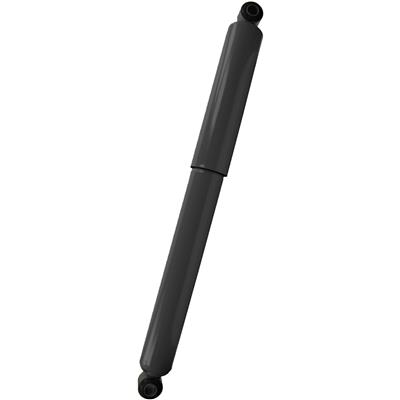

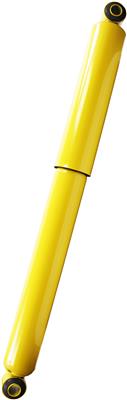

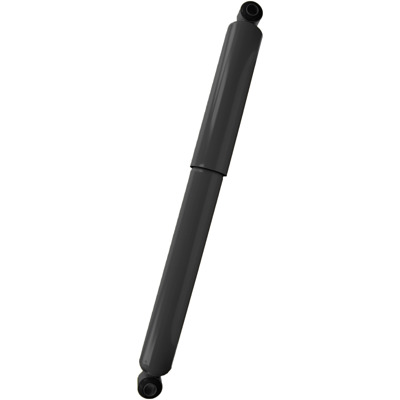

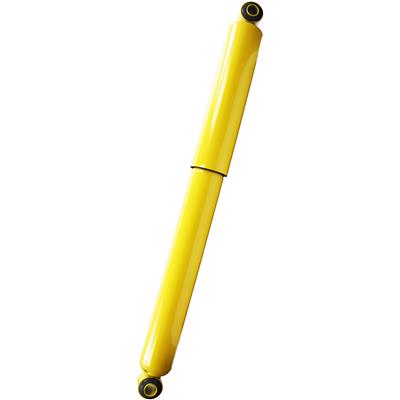

Monroe magnum shock absorber
Part # 65505 | Line Code: MON
brandNameImage
brandNameImage

$91.99
help
Not Fitted / Universal

Product Details
expand_less
Dust Shield Included Yes
Compressed Length 17.4
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Travel Length 11.13
Gas Charged Yes
Dust Shield Yes
Extended Length 724.7
Lower Mounting Description Loop Bushing & Sleeve Mount - 20MM Sleeve ID X 1.3/4" Sleeve OAL
Bloqueo hidráulico extendido Yes
Min Year Covered 1989
Most Popular Year 2013
Max Year Covered 2016
Extended Bumper Stop No
Compressed Bumper Stop No
Product Grade Premium
Parts Pack(s) None
Extended Hydraulic Lockout Yes
Most Popular Make / Model Blue Bird All American RE
Tope de rebote comprimido No
Cubre polvo Yes
Tope de rebote extendido No
Accesorio(s) None
Heavy Duty Supplier Yes
Parts Pack None
Upper Mount Type Loop Bushing & Sleeve Mount - 20MM Sleeve ID X 44.45MM Sleeve OAL
Tipo de Montura Superior Loop Bushing & Sleeve Mount - 20MM Sleeve ID X 44.45MM Sleeve OAL
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 20MM Sleeve ID X 1.3/4" Sleeve OAL
Total Part VIO 67079
Upper Mounting Description Loop Bushing & Sleeve Mount - 20MM Sleeve ID X 44.45MM Sleeve OAL
Lower Mounting Type Loop Bushing & Sleeve Mount - 20MM Sleeve ID X 1.3/4" Sleeve OAL
Upper Mounting Type Loop Bushing & Sleeve Mount - 20MM Sleeve ID X 44.45MM Sleeve OAL
Lower Mount Code LS75
Upper Mount Code LS75
Internal Rebound Bumper No
Part Description Shock Absorber
Lower Mount Type Loop Bushing and Sleeve Mount - 20MM Sleeve ID X 1.3/4" Sleeve OAL
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
The Monroe® Magnum® shock absorber for class 6-8 vehicles is the first gas-charged, large-bore shock for air spring and taper leaf suspensions. The nitrogen gas charge provides the fast response essential for todays heavy truck suspension systems.

Application Summary
expand_more

1989-2016 Blue Bird All American RE (Rear) (Qualifier: Replaces OE Part Number(s) 60998003, with Hendrickson Air Suspension, Shocks are 1.75 (in) Bore, Replaces OE Part Number(s) 00085991); 2008-2014 Mack CXU (Rear) (Qualifier: Replaces OE Part Number(s) 20570098, For additional OE Part Number cross reference information, please refer to the product interchange, with 38,000 (lb) Air Suspension, Shocks are 1.75 (in) Bore); 2008-2015 Mack GU7 (Rear) (Qualifier: Replaces OE Part Number(s) 20570098, For additional OE Part Number cross reference information, please refer to the product interchange, with 38,000 (lb) Air Suspension, Shocks are 1.75 (in) Bore); 2008-2015 Mack GU8 (Rear) (Qualifier: Replaces OE Part Number(s) 20570098, For additional OE Part Number cross reference information, please refer to the product interchange, with 38,000 (lb) Air Suspension, Shocks are 1.75 (in) Bore); 2008-2014 Mack CHU (Rear) (Qualifier: Replaces OE Part Number(s) 20570098, For additional OE Part Number cross reference information, please refer to the product interchange, with 38,000 (lb) Air Suspension, Shocks are 1.75 (in) Bore); 2010-2017 Mack TD700 (Rear) (Qualifier: Replaces OE Part Number(s) 14QK424M, 60670006L, 60670006, 20570098, with 38,000 (lb) Hendrickson Air Suspension, Shocks are 1.75 (in) Bore)
