Water Pump Gasket Fan & Clutch

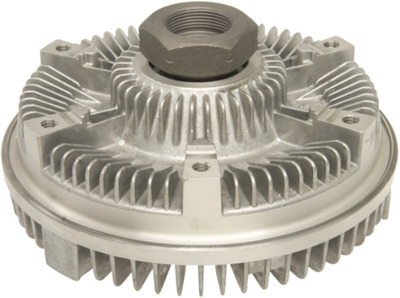

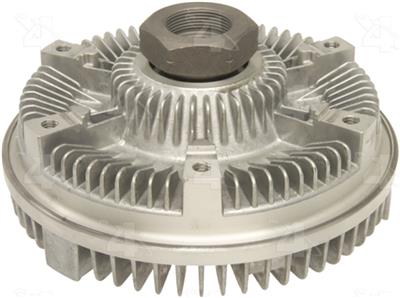

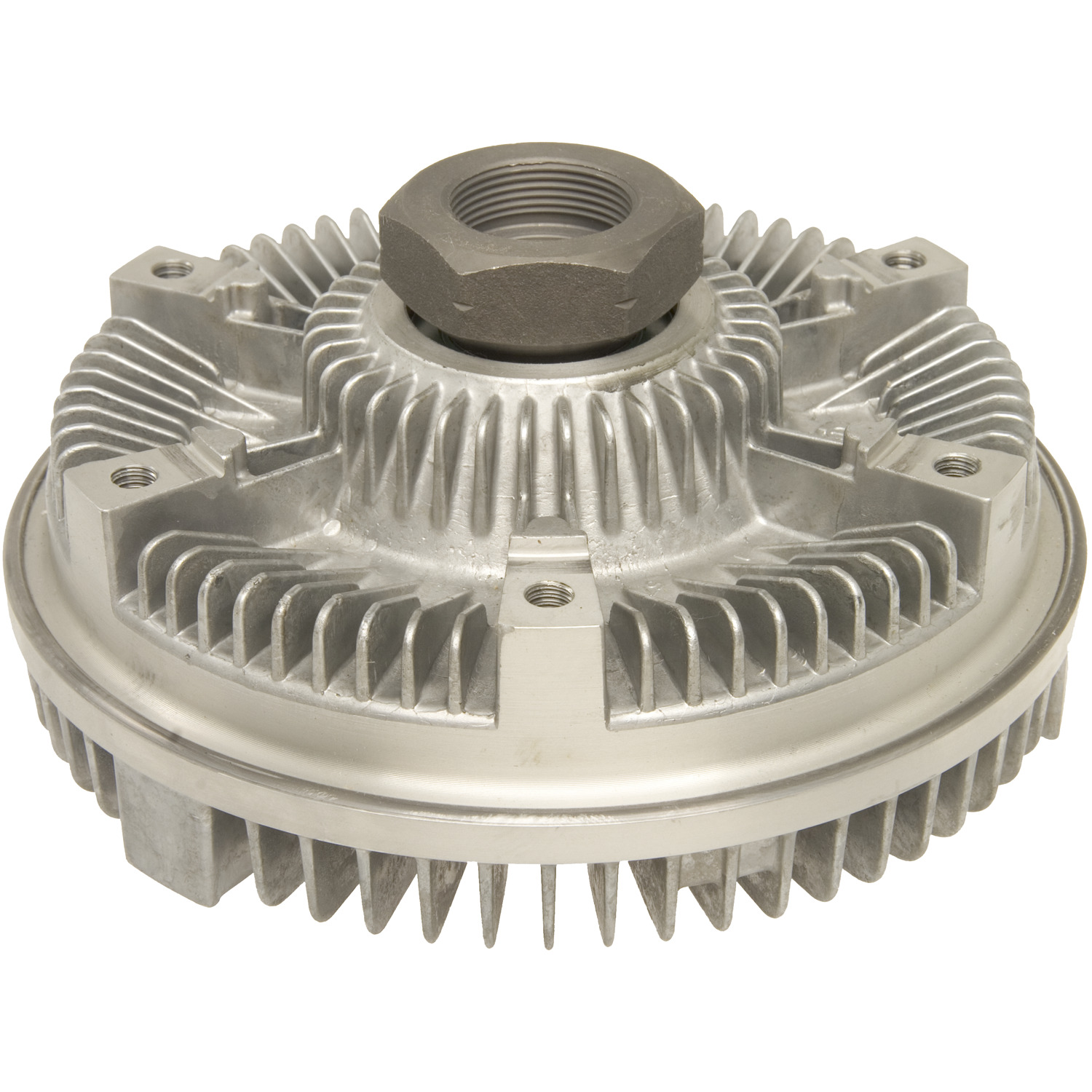

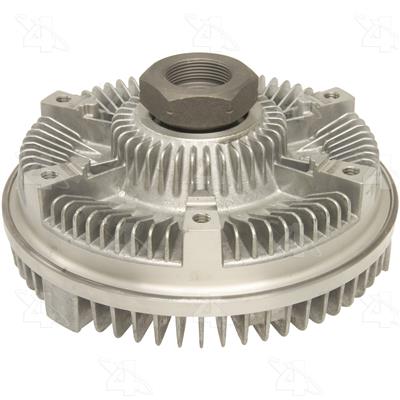

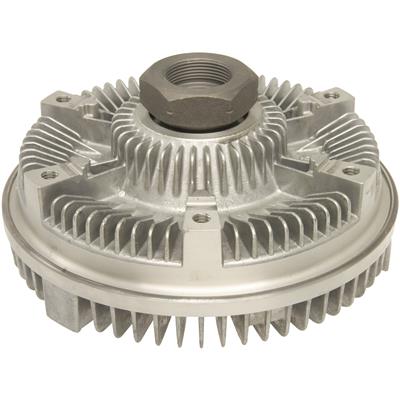

Standard rotation severe duty thermal fan clutch
Part # 2830 | Line Code: PFC

Not Fitted / Universal

Product Details
Terminal Type N/A
Mounting Hole Quantity 6
Distance From Clutch To Mounting Flange 1.2
Clutch Maximum Diameter 7.4
Rotation STD
Mounting Type HEX
Color Raw Aluminum in Color
Use Type Severe
Bolt Hole Quantity 6
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Fan Mount Dia. IN 5
Clutch Type D - Severe Duty & Truck Fan Drive
Fan Mount Height MM 30.48
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Performance Rated? Yes
Bolt Quantity 6
Mounting Hardware? Not Included
Type Thermal
Bolt Thread 5/16-18 Hole
Duty Rating Severe
Style Severe Duty
Drawing Type D
Mount Type HEX
Description Fan Clutches
Electronic Clutch? Non Electronic
Pilot Depth MM 16.5
Overall Dia. MM 188
Mount Hole Qty 6
Fan Mount Dia. MM 126.9
Fan Bolt Circle MM 152.4
Overall Height MM 89.3
Pilot Dia. IN 1 1/4-16
Warranty 1 year/12,000 miles
Dia. IN 7.4
Mount Dia. MM 48
Mount Dia. IN 1.88
Overall Height IN 3.52
Pilot Depth IN 0.66
Overall Dia. IN 7.4
Fan Bolt Circle IN 6
Part Terminology Engine Cooling Fan Clutch

Features & Benefits
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Parts Master.

Application Summary

Ford E150 Van (84); E250 Van (94-83); E350 SERIES VAN (94-83); F150 (84); F250 (94-83); F350 (94-83) >> Ford HD F59 (94-88); F-SuperDuty (94-88)
