Water Pump Gasket Fan & Clutch

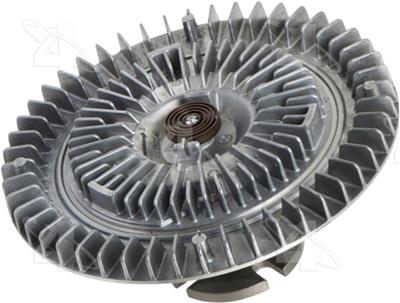

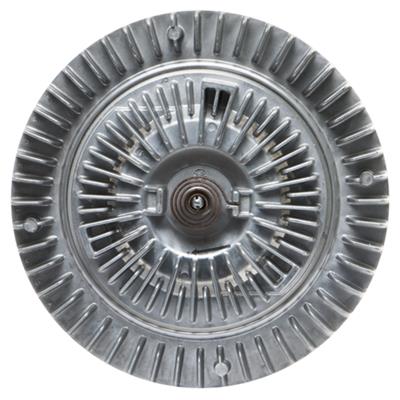

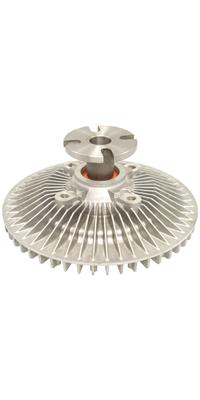

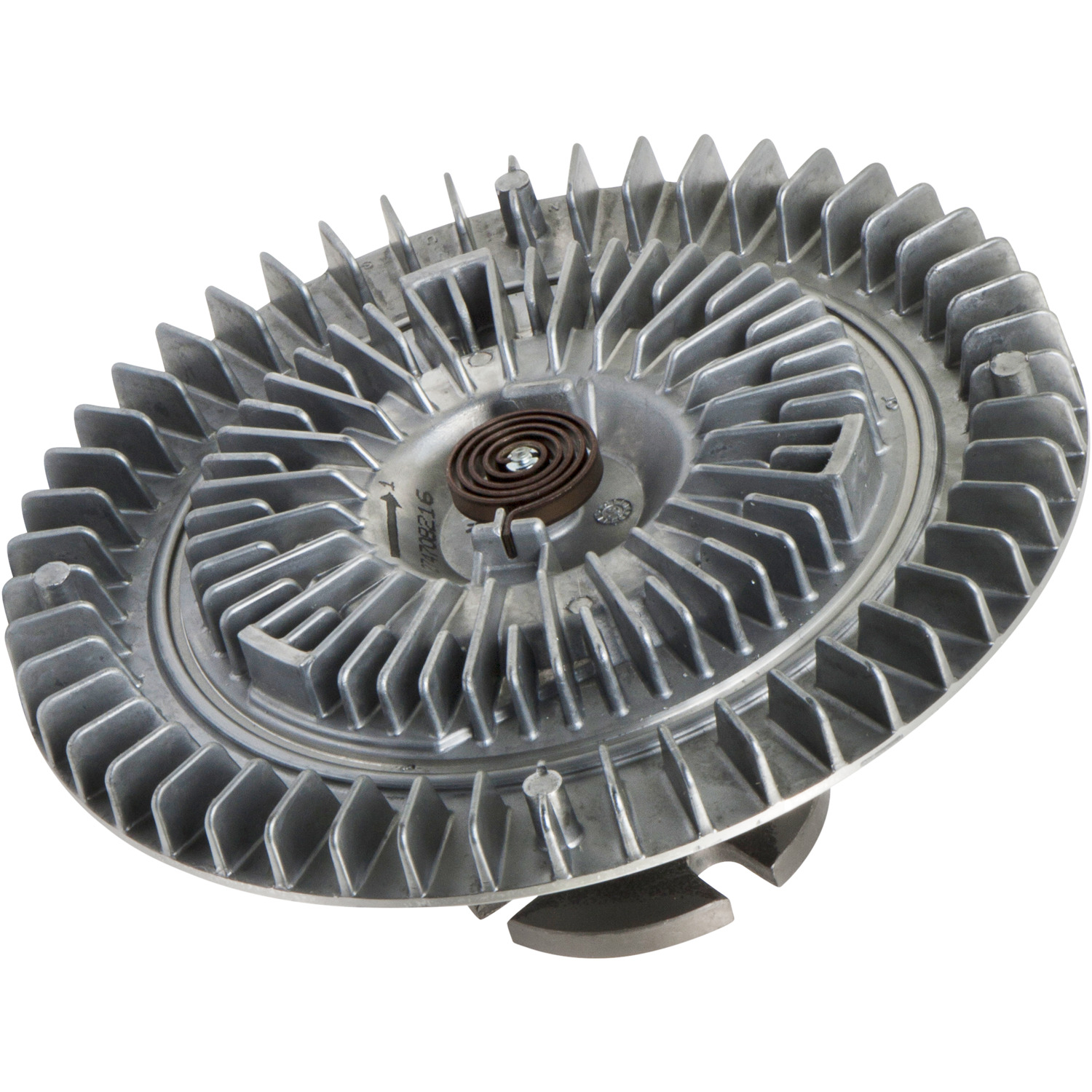

Standard rotation thermal heavy duty fan clutch
Part # 2747 | Line Code: PFC

Not Fitted / Universal

Product Details
Terminal Type N/A
Clutch Maximum Diameter 7.2
Distance From Clutch To Mounting Flange 1.62
Mounting Type Flange
Rotation STD
Mounting Hole Quantity 4
Color Raw Aluminum in Color
Use Type Heavy
Bolt Hole Quantity 4
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Fan Bolt Circle IN 3.25
Mount Type Flange
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Mount Hole Qty 4
Performance Rated? Yes
Mounting Hardware? Not Included
Type Thermal
Bolt Thread 5/16-18 Hole
Fan Mount Dia. MM 66.6
Bolt Quantity 4
Fan Bolt Circle MM 82.6
Fan Mount Dia. IN 2.62
Description Fan Clutches
Pilot Depth MM 16
Mount Dia. MM 66
Electronic Clutch? Non Electronic
Overall Dia. MM 182.9
Clutch Type C - Heavy Duty
Duty Rating Heavy
Style Heavy Duty
Drawing Type C
Pilot Dia. IN 0.75
Mount Dia. IN 2.59
Fan Mount Height MM 41.1
Overall Height MM 84.9
Warranty 1 year/12,000 miles
Dia. IN 7.2
Overall Dia. IN 7.2
Pilot Depth IN 0.63
Overall Height IN 3.34
Part Terminology Engine Cooling Fan Clutch

Features & Benefits
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Parts Master.

Application Summary

Buick Centurion (73-71); Century (81-73); Electra (89-59); Estate Wagon (83-60); Gran Sport (67-65); GS (72-67); Invicta (63-59); LeSabre (90-60); Regal (87-73); Riviera (85-63); Road Master (96-94); Roadmaster (96-94); Skylark (79-65); Wil
