Water Pump Gasket Fan & Clutch

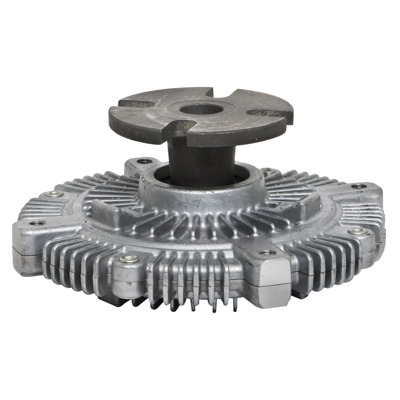

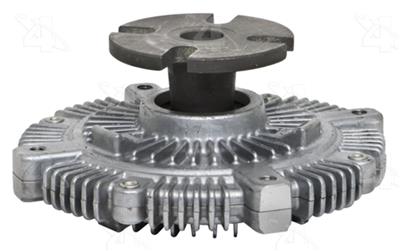

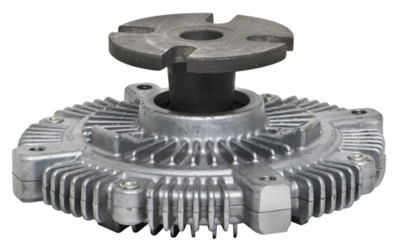

Reverse rotation thermal standard duty fan clutch
Part # 2580 | Line Code: PFC

Not Fitted / Universal

Product Details
Terminal Type N/A
Distance From Clutch To Mounting Flange 2.15
Clutch Maximum Diameter 5.65
Mounting Type Flange
Use Type Standard
Rotation REV
Mounting Hole Quantity 4
Color Raw Aluminum in Color
Bolt Hole Quantity 4
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Clutch Type A - 5" & 6" Import
Mount Type Flange
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Mount Hole Qty 4
Performance Rated? Yes
Mounting Hardware? Not Included
Type Thermal
Pilot Depth MM 17.8
Bolt Quantity 4
Description Fan Clutches
Bolt Thread M6 x 1.0 Hole
Pilot Dia. IN 0.63
Electronic Clutch? Non Electronic
Duty Rating Standard
Style Standard Duty
Drawing Type A
Overall Height MM 68.1
Mount Dia. IN 2.7
Overall Dia. MM 143.5
Fan Mount Dia. MM 111
Mount Dia. MM 69
Fan Bolt Circle MM 127.8
Fan Mount Height MM 54.6
Warranty 1 year/12,000 miles
Dia. IN 5.65
Fan Mount Dia. IN 4.36
Fan Bolt Circle IN 5.03
Overall Height IN 2.69
Pilot Depth IN 0.7
Overall Dia. IN 5.66
Part Terminology Engine Cooling Fan Clutch

Features & Benefits
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Parts Master.

Application Summary

Chevy Astro (87); Blazer (89-87); S10 Pickup (93-87) >> GMC Jimmy (89-87); S15 Pickup (90-87); Safari (87); Sonoma (93-91)
