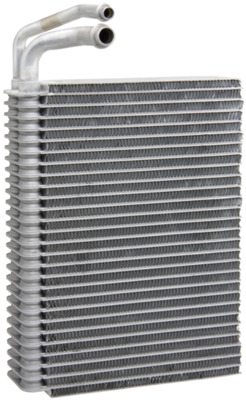

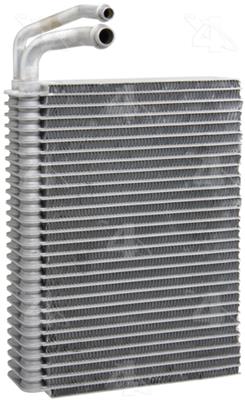

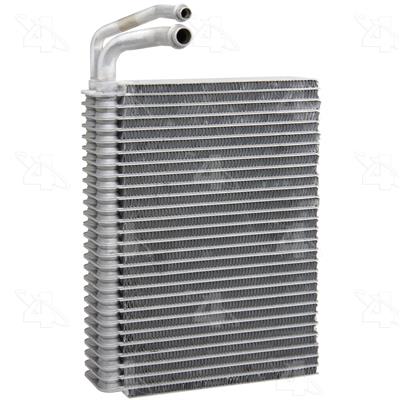

Plate & fin evaporator core
Part # 54817 | Line Code: FSE

Not Fitted / Universal

Product Details
Depth 2.563
Width 9.250
Inlet Fitting Type Captive O-Ring
Outlet Fitting Type Captive O-Ring
Inlet Fitting Outside Diameter No. 8
Outlet Fitting Outside Diameter No. 12
Height 12.13
Type Plate & Fin
Core Width Fraction 9-1/4
Core Height Fraction 12-1/8
Core Depth Fraction 2-9/16
O-Ring B Quantity 1
O-Ring A Quantity 1
Description Evaporator Cores
O-Ring A Number/Desc [24622] / Green O-Ring
O-Ring B Number/Desc [24649] / Green O-Ring
Core Width IN 9.250
Core Depth IN 2.563
Outlet Type Captive O-Ring
Inlet Type Captive O-Ring
Core Height MM 307.98
Core Depth MM 65.09
Core Width MM 231.78
Core Height IN 12.13
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
Part Terminology A/C Evaporator Core

Features & Benefits
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application Summary

Chrysler 300 Series (10-05) >> Dodge Challenger (10-08); Charger (10-06); Magnum (08-05)
