Water Pump Gasket Fan & Clutch

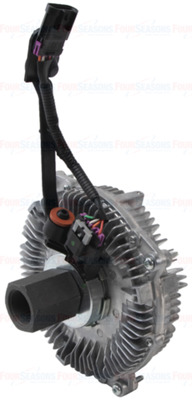

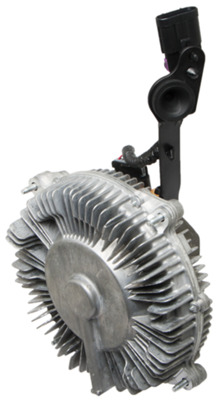

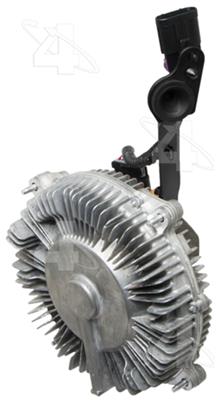

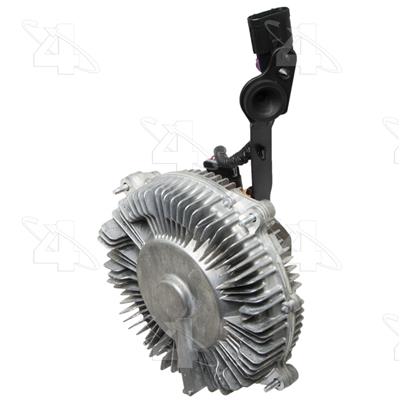

Reverse rotation severe duty electronic fan clutch
Part # 46124 | Line Code: FSE

Not Fitted / Universal

Product Details
Terminal Type Male
Clutch Maximum Diameter 9.39
Distance From Clutch To Mounting Flange 3.8
Rotation REV
Mounting Type HEX
Mounting Hole Quantity 4
Color Raw Aluminum in Color
Use Type Electro-Viscous
Bolt Hole Quantity 4
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Clutch Type D - Severe Duty & Truck Fan Drive
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Mount Hole Qty 4
Performance Rated? Yes
Mounting Hardware? Not Included
Style Severe Duty
Drawing Type D
Bolt Quantity 4
Mount Type HEX
Description Fan Clutches
Type Electronic
Duty Rating Electro-Viscous
Bolt Thread M6 x 1.0 STUD
Overall Dia. MM 238.5
Overall Dia. IN 9.39
Dia. IN 9.39
Overall Height MM 135.38
Mount Dia. IN 2.09
Fan Mount Dia. IN 7.87
Overall Height IN 5.33
Fan Bolt Circle IN 8.66
Pilot Depth IN 1.83
Part Terminology Engine Cooling Fan Clutch

Features & Benefits
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application Summary

Chevy SILVERADO 2500, HD, HD Classic, CHEYENNE 2500 (MODEL) (16-15); SILVERADO 3500, Classic, HD (16-15) >> GMC Sierra (16-15)
