Water Pump Gasket Fan & Clutch

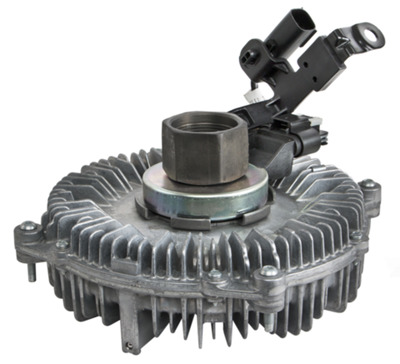

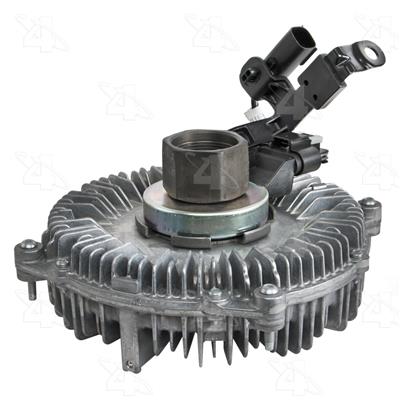

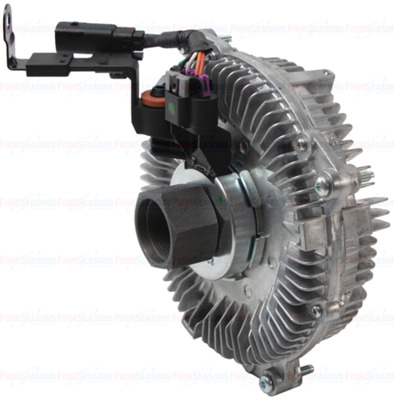

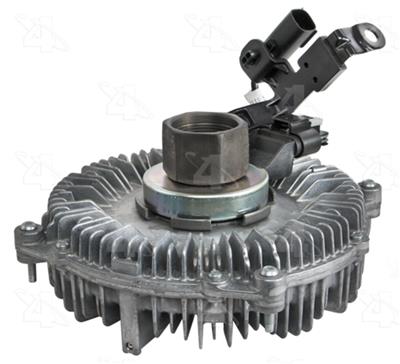

Reverse rotation severe duty electronic fan clutch
Part # 46094 | Line Code: FSE

Not Fitted / Universal

Product Details
Terminal Type Male
Distance From Clutch To Mounting Flange 2.9
Clutch Maximum Diameter 9.39
Wire Gauge Measurement Uses Original Equipment Connector
Rotation REV
Mounting Type HEX
Mounting Hole Quantity 4
Color Raw Aluminum in Color
Use Type Severe Duty
Bolt Hole Quantity 4
Material Aluminum
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Mount Dia. IN 1.86
O.E. Replacement? Yes
New or Reman New
Meets / Exceeds OEM? Yes
SDS Required No (135233618)
Mount Hole Qty 4
Performance Rated? Yes
Mounting Hardware? Not Included
Wire Quantity Uses Original Equipment Connector
Style Severe Duty
Drawing Type D
Bolt Quantity 4
Mount Type HEX
Wire Guage Uses Original Equipment Connector
Description Fan Clutches
Pilot Depth MM 22.9
Type Electronic
Bolt Thread M6 x 1.0 STUD
Duty Rating Severe Duty
Overall Dia. MM 238.5
Pilot Depth IN 0.9
Clutch Type Electronic
Overall Height MM 112.5
Overall Dia. IN 9.39
Fan Bolt Circle MM 226.1
Electronic Clutch? Electronic
Fan Bolt Circle IN 8.9
Overall Height IN 4.43
Dia. IN 9.39
Mount Dia. MM 47
Fan Mount Dia. IN 7.87
Part Terminology Engine Cooling Fan Clutch

Features & Benefits
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application Summary

Ford F250 (14-11); F350 (14-11) >> Ford HD F-450 Super Duty (18-11); F-550 Super Duty (18-11); F650 / F650 Super Duty (18-16); F750 / F750 Super Duty (18-16)
