| Standard Shaft Max (Inch) | 2.2000 |
| Wall thickness Max (MM) | 1.5800 |
| Heavy Duty Supplier | Yes |
| Set Type | Rod Set |
| Engine Family | Big Block |
| Oil Clearance Max (Inch) | 0.0028 |
| Standard Shaft Min (MM) | 55.8550 |
| Overall Length Max (Inch) | 0.8920 |
| Housing Bore Max (Inch) | 2.3252 |
| Wall Thickness Max (Inch) | 0.0622 |
| Standard Size | Standard |
| Design Feature 1 | Standard Size Standard |
| Design Feature 2 | Full set |
| Standard Shaft Min (Inch) | 2.1990 |

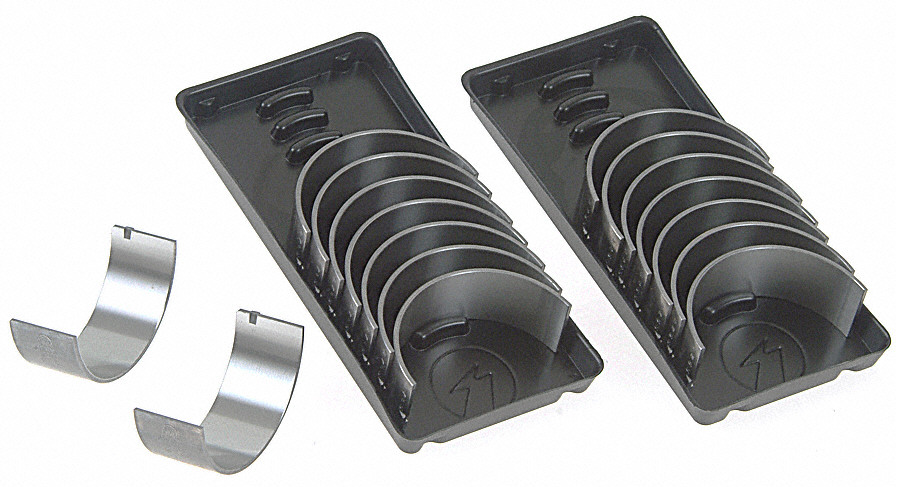

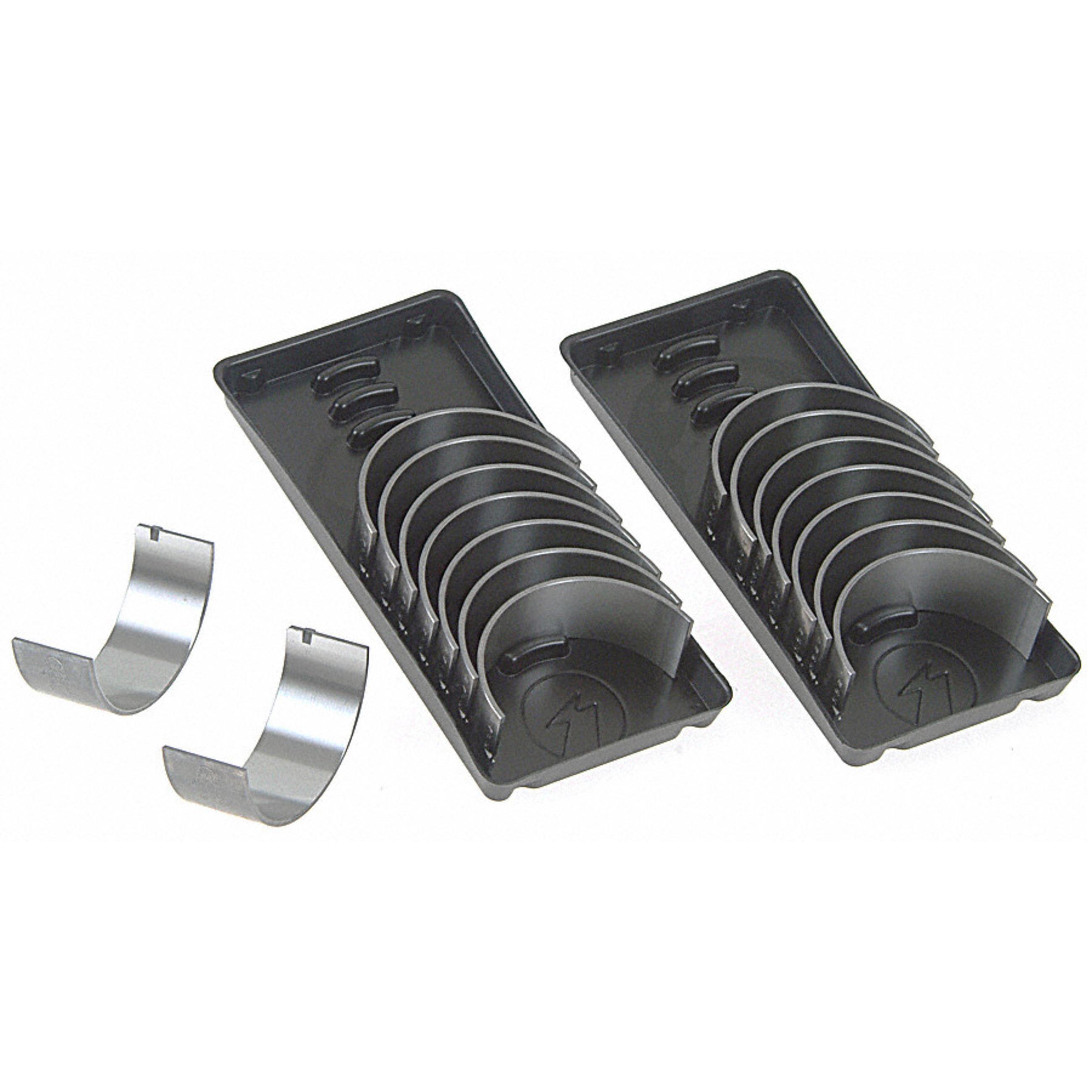

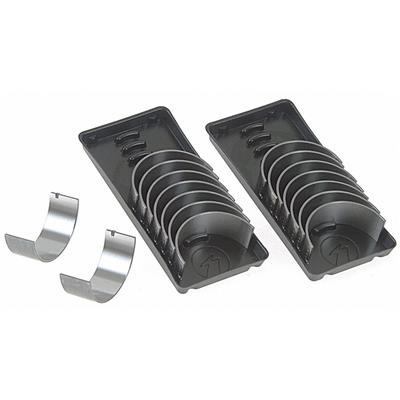

| Part Description | Engine Connecting Rod Bearing Set |
| Package Alert | Full set |
| Standard Shaft Max (MM) | 55.8800 |
| Oil Clearance Min (MM) | 0.0130 |
| Part Material | A-Series aluminum |
| Housing Bore Max (MM) | 59.0600 |
| Material | A-Series aluminum bearings |
| Oil Clearance Max (MM) | 0.0710 |
| Displacement | 396, 402, 427, 454 |
| Sizes | Std-1-10-20-30-40-60 |
| Prop 65 Label (Yes/No) | No |
| Housing Bore Min (MM) | 59.0470 |
| Overall Length Max (MM) | 22.6600 |
| Oil Clearance Min (Inch) | 0.0005 |
| Manufacture | Chevrolet |
| Application | O.E. Replacement |
| Grade Type | Standard Replacement |
| Housing Bore Min (Inch) | 2.3247 |
| Part Terminology | Engine Connecting Rod Bearing Set |
