| Ring Gear Thickness | 13.61 |
| Heavy Duty Supplier | Yes |
| Flywheel Cup Depth/Step Height | 0.021 |
| Number of teeth, starter ring gear | 106 |
| Dowel hole diameter | 0.315 |
| Crank Hole Dia. | 10.42 |
| Flywheel friction surface outer diameter | 8.4646 |
| Centering diameter / dowel hole | 250 |
| Ring Gear Major Dia. | 271.36 |
| Dowel Hole Pattern | 5 |
| Overall Casting O.D. | 271.22 |
| Flywheel Friction Surface Inner diameter | 5.2756 |
| Bolt hole PCD crankshaft | 59.97 |
| Flywheel Inner Diameter | 5.276 |
| Flywheel Thickness [mm] | 1.335 |
| Flywheel Cup Depth or Step Height | 0.53 |
| Ring Gear Chamfer Side | Engine |
| Flange Thickness | 12.47 |
| Crank To Friction Surface | 26.73 |
| I.D. for Pilot | 35.9 |
| Number of Teeth | 106 |
| Bolt Hole Pattern | 2 |
| Flywheel Diameter | 8.465 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Ring Gear Mounting O.D. | 9.7339 |
| Number Of Mounting Bores | 24 |
| Has Dowel Pins | with Dowel Pins |
| Bolt hole PCD clutch pres.plte | 9.8425 |

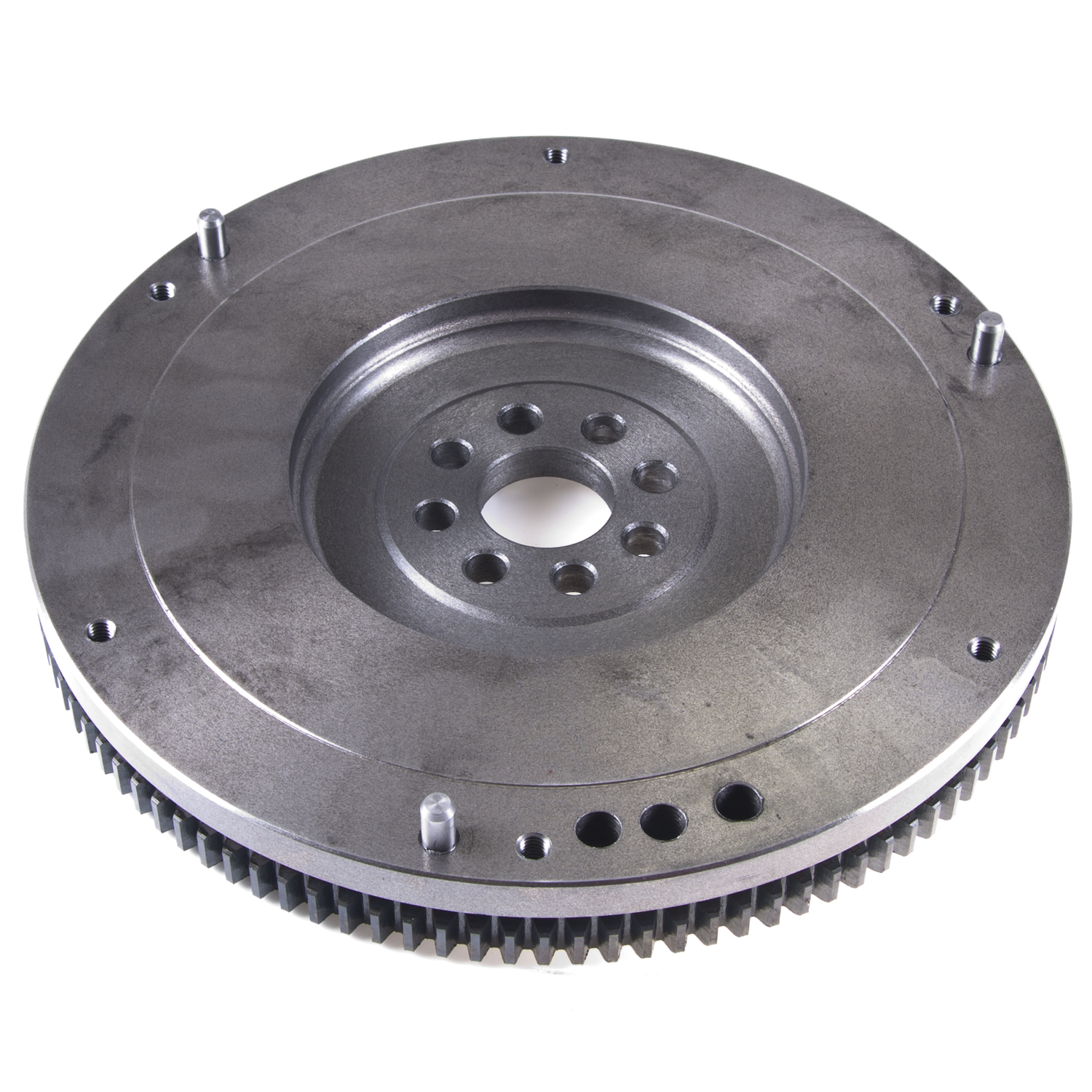

| Part Terminology | Clutch Flywheel |
