| Maximum Working Pressure | 150 |
| Outside Diameter | .375 |
| Material | 360 Brass |
| Seal Material | Ethylene Propylene |
| Length | 1.07 |
| Thread Size | 1/4-18 |
| Temperature Rating | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Drop Length | 1.29 |
| Maximum Working Pressure (psi) | 150 |
| Nut Hex (mm) - H2 | 19 |
| Stem Hex (mm) - H1 | 18 |
| Drop (mm) - T | 32.8 |
| Drop (in) - T | 1.29 |
| Temperature Range | -40 Deg. F to +200 Deg. F (-40 Deg. C to +93 Deg. C) |
| Thread Size - T1 | 1/4-18 |
| Tube Outside Diameter (in) | .375 |
| Industrial Description | 6AB-4MPX90 |
| California Proposition 65 | WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov. |

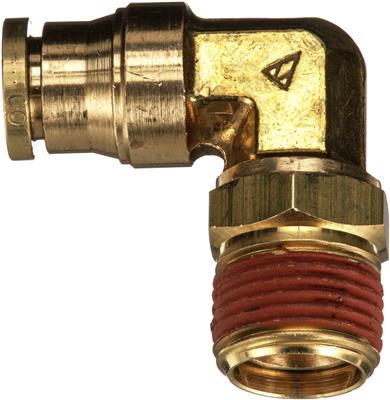

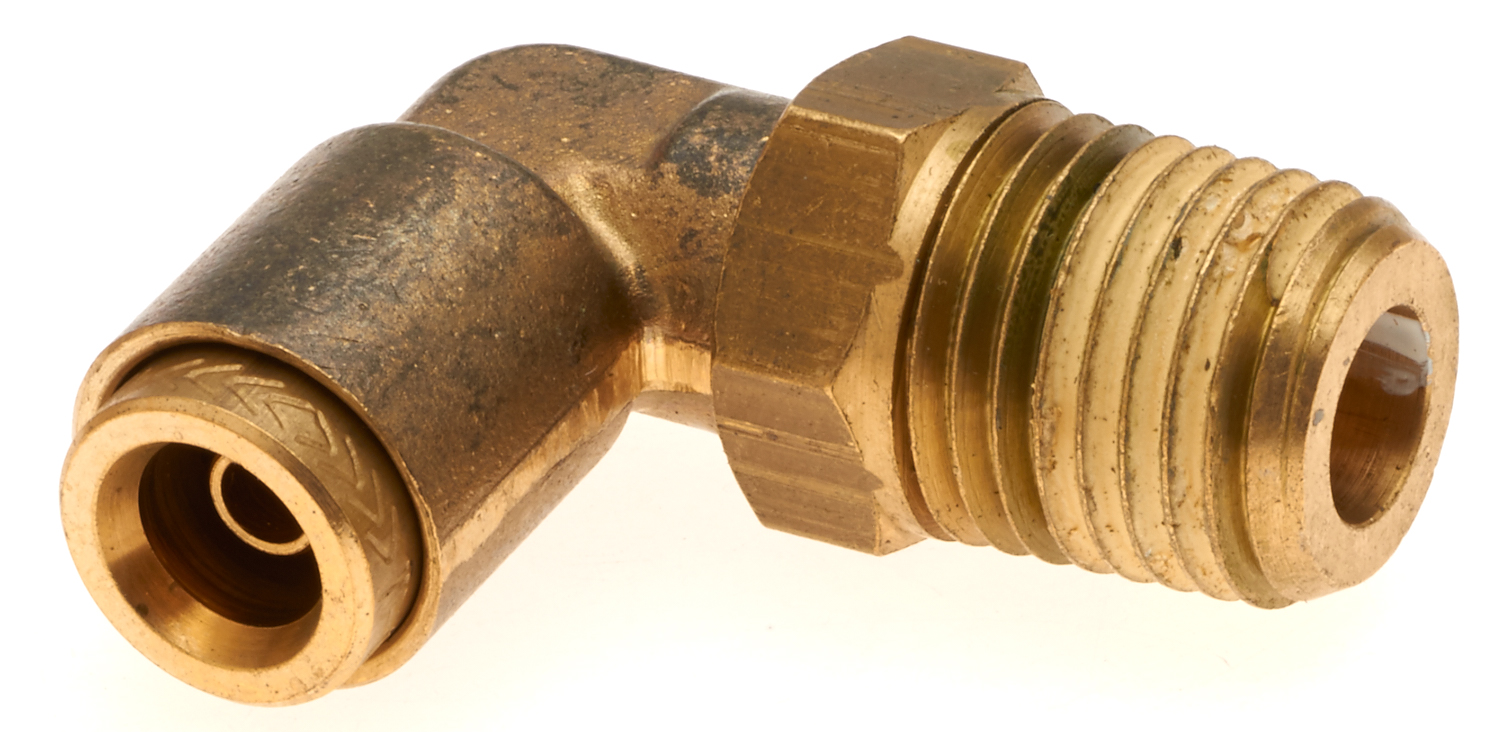

| Coupling Description | SureLok Air Brake to Male Pipe Swivel - 90 |
| Heavy Duty Supplier | Yes |
| Alliance Keywords | hydraulic hose, hydraulic fitting, hydraulic coupler, Boyau hydraulique, Accouplement |
| Length (in) | 1.07 |
| Length (MM) | 27.2 |
| Part Terminology | Hydraulic Coupling / Adapter |
