| Bolt Type | .25 in. - 28 Male Pipe Thread |
| Band Width | 19.1 |
| Nut Type | .4375 in. (11.1 mm) Hex-Head |
| Material | Plated Steel |
| Spring Material | Plated Steel |
| Adjustment Type | T-Bolt (Spring-Loaded) |
| Maximum Clamping Length | 85.7 |
| Minimum Clamping Length | 77.8 |
| Clamping Range Min (in) | 3.0625 |
| Band Width (in) | .75 |
| Recommended Torque (in/lbs) | 75 |
| Size | 70 |
| Type | T-Bolt (Spring-Loaded) |
| Clamping Range Max (mm) | 85.7 |
| Clamping Range Min (mm) | 77.8 |
| Clamping Range Max (in) | 3.375 |
| Heavy Duty Supplier | Yes |
| Duty Type | Heavy Duty |
| Alliance Keywords | Hose, Clamp, Clamps, collier de serrage, |

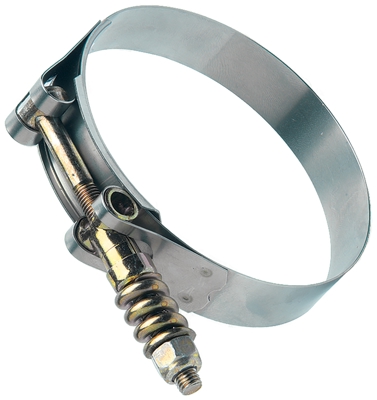

| Part Terminology | Hose Clamp |
