Air Conditioning Compressor Clutch & Idler Assembly

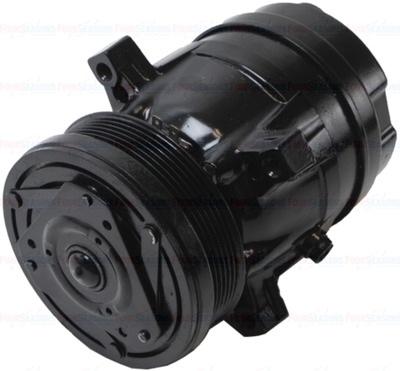

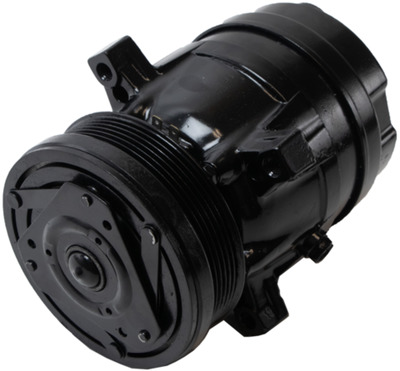

GM V5 Reman Compressor
Part # 57278 | Line Code: FSE
brandNameImage
brandNameImage

$296.99
error
Not Fitted
Core Charge: $61.00

Product Details
expand_less
Compressor Type V5
Clutch Maximum Diameter 5.000
Clutch Pulley Diameter 5.000
Coil Clock Position 10
Pulley Belt Type Serpentine
Compatible Refrigerant Oil Type PAG 150
Pulley Lip Diameter 5.000
Pulley Ridge Diameter 5.000
Switch Included High Pressure
Mounting Type Ear Mount
Switch Type Pressure Switch
Clutch Included Included
Oil Filled Included
Distance From Clutch To Mounting Flange 1.16
Coil Voltage 12
Belt Type Serpentine
Pulley Groove Quantity 6
Refrigerant Type R134a
Connector Shape Spade
Terminal Type Spade
Distance Between Mounting Holes 1.16
Printed Foot Note This compressor is equipped with an R12 Control Valve. If retrofitting to R134a, Control Valve [38846] is recommended for optimum system performance.
New or Reman Remanufactured
Heavy Duty Supplier Yes
Style Wobble Plate
Description Compressors - Reman
O-Ring A Quantity 2
Ctch Dia. MM Prmy 127.000
Type GM
Switch / Sensor Desc High Pressure
Oil Type PAG 150
Connector Type Spade
Mount Type Ear Mount
Pulley Diameter MM 127
Mounting Hardware? Not Included
Coil Number [48255] / Clutch Assembly
Coil Type Spade
Suc Prt Typ Note W/ O-Rings / Sealing Washer
Suction Port Type Block Mount
Coil Clock 10
Model V5
O-Ring B Number/Desc N/A
O-Ring B Quantity N/A
Electronic Control Valve No
Pulley Diameter IN 5.000
Mount Distance IN 1.16
Groove 6
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm.
O-Ring A Number/Desc 24615 / Green O-Ring
Reman w/o Clutch 57272 / Clutch Assembly
Part Note This compressor is equipped with an R12 Control Valve. If retrofitting to R134a, Control Valve 38846 is recommended for optimum system performance.
Part Terminology A/C Compressor

Features & Benefits
expand_more
Our products are engineered and tested to provide years of trouble free operation. Backed by over 50 years of mobile a/c experience, fix it once and fix it right with Four Seasons.

Application Summary
expand_more

Chevy Astro (90-87); Blazer (88-87); S10 Pickup (92-87) >> GMC Jimmy (88-87); S15 Pickup (90-87); Safari (90-87); Sonoma (92-91)
